Product Overview
The Westglass Light Gray PDLC Self-Adhesive Smart Dimming Film utilizes Polymer-Dispersed Liquid Crystal (PDLC) technology to achieve instant switching between clear and frosted states by controlling liquid crystal molecular alignment via electric fields. It presents a soft light gray opaque effect, effectively blocking line of sight while maintaining natural daylighting for privacy protection.
With a self-adhesive design, this film directly applies to glass surfaces without complex installation, upgrading ordinary glass with smart functionality. The light gray tone combines basic dimming performance with a soft, premium texture, suitable for modern aesthetic and functional integration in high-end commercial spaces, smart homes, car sunroofs, and more.
Why Choose Westglass?
1. Industry Expertise
- 8 years of experience in smart film production and sales, delivering professional technical support and tailored solutions.
2. Professional Manufacturing
- Advanced facilities and mature processes with strict three-layer quality control standards:
- 100% full roll inspection to eliminate defects
- Oven baking tests for durability
- Sheet power aging verification
- Customization options:
- Electrode-integrated sheets (sized to your windows)
- Roll materials (1.2/1.45x30/50m)
- Laser-cut special shapes (curved glass, circular sunroofs, etc.)
- Laser-etching for corporate logos/art patterns
3. Expedited Delivery
- Custom sizes shipped within 3 business days
- Standard sizes shipped within 1 business day
Core Advantages
1. Intelligent Privacy with Elegant Transition
- Dual-State Functionality:
- Power-on: HD clear state (light transmittance > 80%);
- Power-off: Light gray frosted mode (light transmittance < 10%)—balances privacy and natural light, softening glare for office partitions, bathroom glass, and panoramic sunroofs.
- Sleek Aesthetics: Light gray frosting provides subtle visual screening, ideal for modern minimalist designs.
- Ultra-Fast Switching: <200ms response time for seamless user experience.
2. Multi-Functional Projection & Display
- High-Contrast Projection Screen: Supports front/back projection in frosted state, suitable for corporate showrooms, mall windows, and home theaters.
- Enhanced Visual Layers: Light gray background improves projection contrast and depth.
3. Energy Efficiency & Eco-Comfort
- Full-Spectrum Blocking: 99% UV and >60% IR rejection reduces heat radiation and AC energy use while protecting furniture from aging.
- Low Power Design: ~5W/m² consumption, stable 24/7 operation with >80,000-hour lifespan.
4. Safety & Durability
- Impact-Resistant Film: Holds shattered glass fragments, compliant with safety standards for high-traffic areas.
- Wide Temperature Range: Operates in -10℃~65℃ climates.
5. Tool-Free Installation & Smart Control
- Peel-and-Stick Design: Optical-grade adhesive fits curved glass, leaves no residue when removed—perfect for retrofits.
- Multi-Control Compatibility: Works with physical switches, remotes, voice commands, apps, and smart home systems for one-touch modes (e.g., "movie mode" vs. "meeting mode").
Technical Highlights
- Zoned Dimming Control: Customizable partition dimming for personalized space design.
- Projection Compatibility: Light gray tone enhances projection contrast; supports projection in both clear and frosted states.
- Premium Aesthetics: Soft light transmission suits Nordic and minimalist design styles.
Application Scenarios
1. Commercial Spaces
- Office partitions, luxury brand windows, smart showroom screens (frosted for privacy, clear for foot traffic attraction).
2. Luxury Residences
- Bathroom partitions, panoramic sunroofs, home theater systems (light gray tone minimizes visual clutter, frosted for privacy).
3. Transportation
- Car sunroofs, high-speed rail privacy glass, yacht windows (lightweight design + smart dimming).
4. Public Facilities
- Hospital privacy cubicles, museum display cases, airport signage (hygienic, low-maintenance smart glass).
Elevate Your Space with Smart Elegance
Contact Westglass today for custom light gray PDLC film solutions and seamless global delivery.
Technical Parameters
| WEST Smart Film Series Same Technical Specifications |
| Item No. | Mode | Unit | Tolerance | Specification |
| Optical Performance | Viewing Angle | On | ° | / | ＞140 |
| Electrical performance | Operate Voltage | On | AC/V | / | 48～65(50/60HZ) |
| Response Time | On→Off | ms | / | ≤200 |
| Off→On | ms | / | ≤10 |
| Power Consumption | On | W/m2 | / | ＜5.0 |
| Heat shrinkage | TD | / | % | / | ≤0.1 |
| MD | / | % | / | ≤0.4 |
| UV Rejection | On/Off | % | / | ≥99 |
| Color Difference △E(reflection) | Off | CIELAB | / | ≤2.5 |
| Working Temperature | / | ℃ | / | -20～75℃ |
| Storage Temperature | / | ℃ | / | -20～70℃ |
| Storage Humidity | / | % | / | 20～60 |
| Lifespan | On | h | / | ＞80000 |
| VLT 91% White Adhesive Smart Film Technical Specifications |
| Item No. | Mode | Unit | Tolerance | Specification |
| Optical performance | VLT | On | % | ±1 | 90 |
| Off | % | / | ＞65 |
| Haze | On | % | ±0.5 | 2.5 |
| Off | % | / | ＞98 |
| Thickness | / | μm | ±5 | 395 |
| VLT 89% Adhesive Smart Film Technical Specifications |
| Item | Mode | Unit | Tolerance | Specification |
| Optical performance | VLT | On | % | / | 87 |
| Off | % | / | 72 |
| Haze | On | % | / | ≤4.0 |
| Off | % | / | ＞98 |
| Thickness | / | μm | ±10 | 479 |
| VLT 89% Non-Adhesive Smart Film Technical Specifications |
| Item | Mode | Unit | Tolerance | Value |
| Optical Performance | VLT | On | % | / | 88 |
| Off | % | / | 72 |
| Haze | On | % | / | ≤3 |
| Off | % | / | ＞98 |
| Thickness | / | μm | ±3 | 394 |
| Smart PNLC Film Technical Specifications |
| Item | Mode | Unit | Tolerance | Specification |
| Optical Performance | VLT | Off | % | / | 88 |
| ON | % | / | 9 |
| Parallel Light Transmission | Off | % | / | 80 |
| On | % | / | 7 |
| Haze | Off | % | / | 10 |
| On | % | / | 92 |
| Electrical Performance | Response Time | On/Off | S | / | 0.5 |
| Weather Resistance Test | / | Hours | / | 2000 |
| Thickness | / | μm | ±10 | 260 |
| Silicon Peeling Force | / | g | / | 10 |
| VLT 83% Non-Adhesive Smart Film Technical Specifications |
| Item No. | Mode | Unit | Tolerance | Specification |
| Optical Performance | VLT | On | % | ±1 | 83 |
| Off | % | / | ＞55 |
| Haze | On | % | ±0.5 | 4.1 |
| Off | % | / | ＞96 |
| Electrical Performance | Response Time | On→Off | ms | / | ≤100 |
| Off→On | ms | / | ≤10 |
| Thickness | / | μm | ±5 | 395 |
| VLT 83% White Adhesive Smart Film Technical Specifications |
| Item No. | Mode | Unit | Tolerance | Specification |
| Optical Performance | VLT | On | % | ±1 | 83 |
| Off | % | / | ＞55 |
| Haze | On | % | ±0.5 | 4.3 |
| Off | % | / | ＞96 |
| Electrical performance | Operate Voltage | On | AC/V | / | 48～65(50/60HZ) |
| Response Time | On→Off | ms | / | ≤100 |
| Off→On | ms | / | ≤10 |
| Shrinkage | TD | / | % | / | ≤0.2 |
| MD | / | % | / | ≤0.9 |
| Thickness | / | μm | ±5 | 560 |
| Scratch Resistance | / | H | / | 3.0 |
| Silicone Layer Peel Strength | / | g | ±2 | 10 |

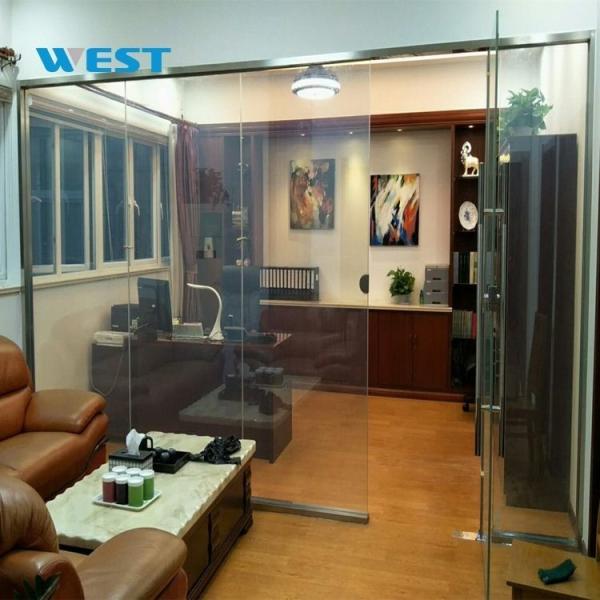

Case Studies
Product Packaging
Accepted Delivery Terms
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES, and more.
About Westglass:
Westglass specializes in manufacturing and exporting automotive paint protection film (PPF), smart films, intelligent glass, photochromic films, automotive window films, and related products. Our solutions are exported to 50+ countries renowned for superior quality, competitive pricing, and exceptional after-sales service.
Let us be your trusted partner in smart glazing and protective film solutions!
